10066462 | Fischer Elektronik

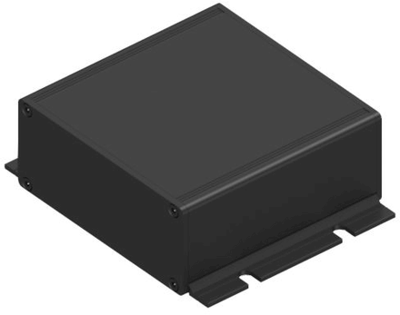

Aluminum tubular enclosure, (L x W x H) 105 x 100.3 x 44 mm, black, 10066462

Order No.: 60H832
EAN: 4099889520040
MPN:
10066462
TUG 05 100 L SA
Series: TUG
Fischer Elektronik
10066462 Fischer Elektronik General Purpose Enclosures Image 1
10066462 Fischer Elektronik General Purpose Enclosures Image 2
10066462 Fischer Elektronik General Purpose Enclosures Image 3
Image may differ
Unit Price (€ / pc.)
29.5001 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
29.50 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
29.5001 €

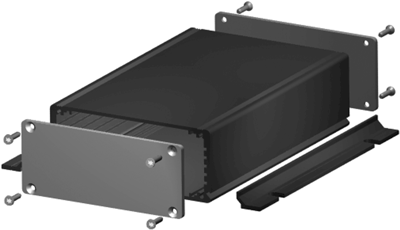

Tubular housings, type Fischer TUG 03../TUG 05.

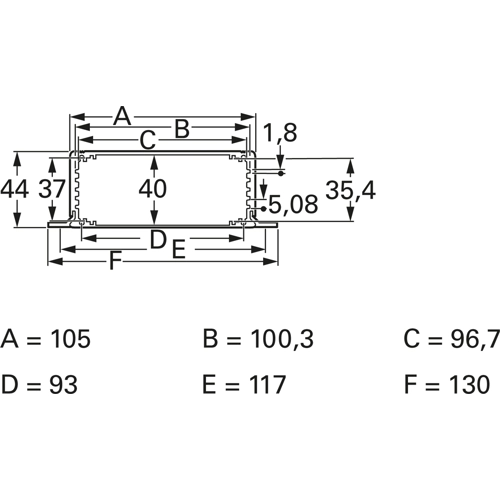

With integrated guide grooves for PCBs (width 100 mm) and 5.08 mm grid (1HP). EMC compatible through surface with chromium-free, transparent passivation. Screwless assembly of the mounting straps; Housing: aluminum, anodized, black. Dimensions type 100L/160L: A 105, B 100,3, C 96,7, D 93, E 117, F 130 mm.

Type: TUG 05 100L SA, tube enclosure, 100 x 105 x 44 mm.

Technical specifications
Width 100.3 mm
Colour black
Height 44 mm
Length 105 mm
Material aluminum
Logistics
Country of origin DE
Customs tariff number 76169990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
