10006849 | Fischer Elektronik

Name: Pin heatsink, (L x W x H) 14 x 14 x 10 mm, 8.8 to 4.2 K/W, natural aluminum, 10006849
Brand: Fischer Elektronik
SKU: 65B1004
Price: 5.19 EUR
Availability: OutOfStock

Pin heatsink, (L x W x H) 14 x 14 x 10 mm, 8.8 to 4.2 K/W, natural aluminum, 10006849

Order No.: 65B1004

EAN: 4099889471144

MPN:

10006849

ICK S 14 X 14 X 10

Series: ICK S

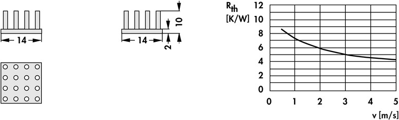

10006849 Fischer Elektronik Heat Sinks Image 1

10006849 Fischer Elektronik Heat Sinks Image 2

Image may differ

Key Specification:

min. Wärmewiderstand 4.2 K/W

max.Wärmewiderstand 8.8 K/W

Länge 14 mm

Breite 14 mm

Show 25 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

5.1884 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

5.19 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Pin heatsink, 10006849, Fischer Elektronik

Pin heatsink 14 x 14 x 10 mm, pin heatsinks quadratic.

Technical specifications

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	76169990

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
