10006855 | Fischer Elektronik

Name: Pin heatsink, 25 x 25 x 12.5 mm, 5.3 to 2.1 K/W, natural aluminum, 10006855
Brand: Fischer Elektronik
SKU: 65B528
Price: 4.47 EUR
Availability: OutOfStock

Pin heatsink, 25 x 25 x 12.5 mm, 5.3 to 2.1 K/W, natural aluminum, 10006855

Order No.: 65B528

EAN: 4099889471960

MPN:

10006855

ICK S 25 X 25 X 12,5

Series: ICK S

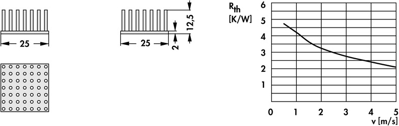

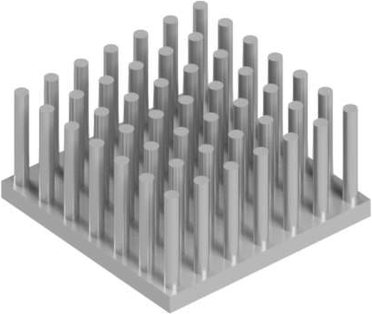

10006855 Fischer Elektronik Heat Sinks Image 1

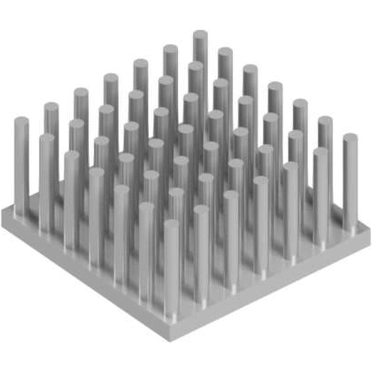

10006855 Fischer Elektronik Heat Sinks Image 2

Image may differ

Key Specification:

Min. heat resistance 2.1 K/W

Max. heat resistance 5.3 K/W

Length 25 mm

Width 25 mm

Show 21 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

4.4744 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

4.47 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Pin heatsink, type Fischer ICK.

Square design.

Technical specifications

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	DE
Customs tariff number	76169990

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
