10018936 | Fischer Elektronik

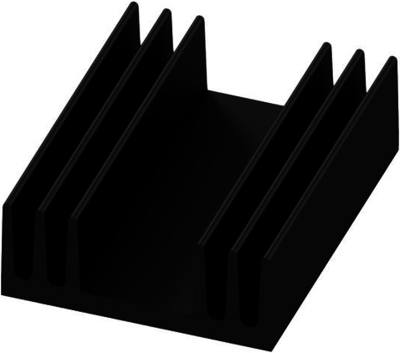

Extruded heatsink, 37.5 x 29 x 11.5 mm, 15.7 to 6.8 K/W, black anodized, 10018936

Order No.: 70B716
EAN: 4099889475760
MPN:
10018936
SK 09 37,5 SA
Series: SK
Fischer Elektronik
10018936 Fischer Elektronik Heat Sinks Image 1
10018936 Fischer Elektronik Heat Sinks Image 2
Image may differ
Print
Key Specification:
Min. heat resistance 6.8 K/W
Max. heat resistance 15.7 K/W
Length 37.5 mm
Width 29 mm
Show 6 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.9516 € *
Available: 75 pcs.
Leadtime: On Request **
Total Price:
19.52 € *
Price list
Quantity
Price per unit*
10 pcs.
1.9516 €
50 pcs.
1.7136 €
250 pcs.
1.4756 €
1000 pcs.
1.3090 €
2500 pcs.
1.1781 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

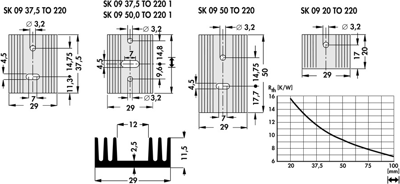

Profile heatsink, type Fischer SK 09.

Made of black anodized aluminum, no perforation.
Technical specifications
Version profile heatsink
Width 29 mm
Suitable for cover plates
Height 11.5 mm
Length 37.5 mm
Material die-cast aluminum
Max. heat resistance 15.7 K/W
Min. heat resistance 6.8 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
