10019009 | Fischer Elektronik

Extruded heatsink, 100 x 159 x 10 mm, 3.6 to 1.7 K/W, black anodized, 10019009

Order No.: 72B416
EAN: 4099889476293
MPN:
10019009
SK 105 100 SA
Series: SK
Fischer Elektronik

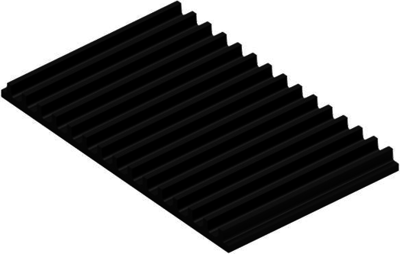

10019009 Fischer Elektronik Heat Sinks Image 1

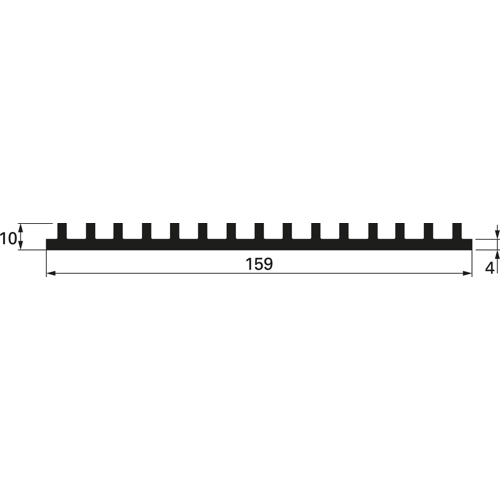

10019009 Fischer Elektronik Heat Sinks Image 2
Image may differ
Print
Key Specification:
Min. heat resistance 1.7 K/W
Max. heat resistance 3.6 K/W
Length 100 mm
Width 159 mm
Show 3 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
10.1626 € *
Available: 76 pcs.
Leadtime: On Request **
Total Price:
10.16 € *
Price list
Quantity
Price per unit*
1 pcs.
10.1626 €
10 pcs.
9.3534 €
50 pcs.
8.5085 €
100 pcs.
7.6636 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Profile heatsink, type Fischer SK 105.

Made of black anodized aluminum, no perforation. Meter section for orders as of 10 items on request.
Technical specifications
Version extruded heatsink
Width 159 mm
Suitable for PCB mounting
Height 10 mm
Length 100 mm
Material aluminum
Max. heat resistance 3.6 K/W
Min. heat resistance 1.7 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
