10019340 | Fischer Elektronik

Extruded heatsink, 1000 x 265 x 50 mm, 1.1 to 0.65 K/W, natural aluminum, 10019340

Order No.: 65B822
EAN: 4099889472837
MPN:
10019340
SK 149 1000 AL
Series: SK
Fischer Elektronik
10019340 Fischer Elektronik Heat Sinks Image 1
10019340 Fischer Elektronik Heat Sinks Image 2
Image may differ
Print
Key Specification:
Min. heat resistance 0.65 K/W
Max. heat resistance 1.1 K/W
Length 1000 mm
Width 265 mm
Download Datasheet Technical specifications
Unit Price (€ / pc.)
300.9153 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
300.92 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
300.9153 €
Description
Technical specifications
Download
Logistics
Compliance

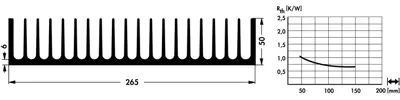

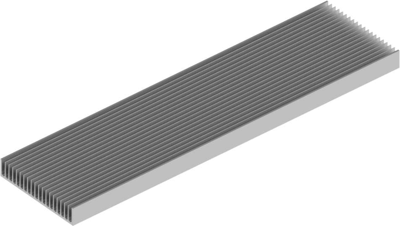

Standard extruded heatsink, SK 149 1000 AL, Fischer Elektronik

Standard extruded heatsink with thermal resistance: 1.1-0.65 K/W, Surface: raw degreased aluminium.
Technical specifications
Version extruded heatsink
Width 265 mm
Height 50 mm
Length 1000 mm
Material aluminum
Max. heat resistance 1.1 K/W
Min. heat resistance 0.65 K/W
Surface type natural aluminum
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
