10019657 | Fischer Elektronik

Extruded heatsink, 1000 x 250 x 40 mm, 0.9 to 0.36 K/W, natural aluminum, 10019657

Order No.: 65B837
EAN: 4099889472981
MPN:
10019657
SK 199 1000 AL
Series: SK
Fischer Elektronik

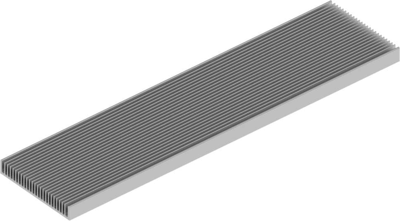

10019657 Fischer Elektronik Heat Sinks Image 1
10019657 Fischer Elektronik Heat Sinks Image 2
Image may differ
Print
Key Specification:
Min. heat resistance 0.36 K/W
Max. heat resistance 0.9 K/W
Length 1000 mm
Width 250 mm
Download Datasheet Technical specifications
Unit Price (€ / pc.)
280.2688 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
280.27 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
280.2688 €
Description
Technical specifications
Download
Logistics
Compliance

Standard extruded heatsink, 10019657, Fischer Elektronik

Standard extruded heatsink with thermal resistance: 0.9-0.36 K/W, Surafce: raw degreased aluminium (by the metre raw aluminium).
Technical specifications
Version extruded heatsink
Width 250 mm
Height 40 mm
Length 1000 mm
Material aluminum
Max. heat resistance 0.9 K/W
Min. heat resistance 0.36 K/W
Surface type natural aluminum
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
