Deutsch DE

10019944 | Fischer Elektronik

Extruded heatsink, 1000 x 160 x 50 mm, 1.25 to 0.55 K/W, natural aluminum, 10019944

Order No.: 65B849
EAN: 4099889473094
MPN:
10019944
SK 416 1000 AL
Series: SK
Fischer Elektronik
10019944 Fischer Elektronik Heat Sinks Image 1
10019944 Fischer Elektronik Heat Sinks Image 2
Image may differ
Print
Key Specification:
Min. heat resistance 0.55 K/W
Max. heat resistance 1.25 K/W
Length 1000 mm
Width 160 mm
Download Datasheet Technical specifications
Unit Price (€ / pc.)
254.8861 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
254.89 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
254.8861 €
Description
Technical specifications
Download
Logistics
Compliance

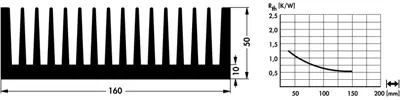

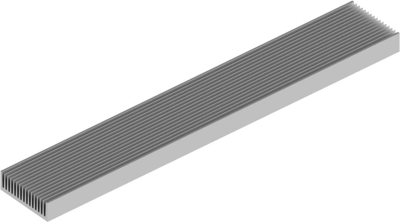

Standard extruded heatsink, 10019944, Fischer Elektronik

Standard extruded heatsink with thermal resistance: 1.25-0.55 K/W, Surafce: raw degreased aluminium (by the metre raw aluminium).
Technical specifications
Version extruded heatsink
Width 160 mm
Height 50 mm
Length 1000 mm
Material aluminum
Max. heat resistance 1.25 K/W
Min. heat resistance 0.55 K/W
Surface type natural aluminum
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
