10019994 | Fischer Elektronik

Extruded heatsink, 1000 x 167 x 15 mm, 2.2 to 0.9 K/W, natural aluminum, 10019994

Order No.: 65B855
EAN: 4099889473155
MPN:
10019994
SK 421 1000 AL
Series: SK
Fischer Elektronik

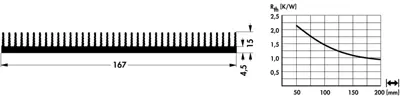

10019994 Fischer Elektronik Heat Sinks Image 1

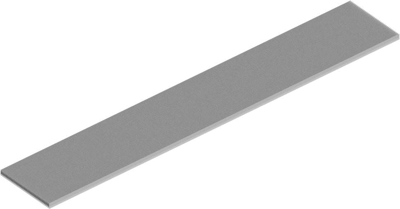

10019994 Fischer Elektronik Heat Sinks Image 2
Image may differ
Print
Key Specification:
Min. heat resistance 0.9 K/W
Max. heat resistance 2.2 K/W
Length 1000 mm
Width 167 mm
Download Datasheet Technical specifications
Unit Price (€ / pc.)
113.8949 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
113.89 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
113.8949 €
Description
Technical specifications
Download
Logistics
Compliance

Standard extruded heatsink, 10019994, Fischer Elektronik

Standard extruded heatsink with thermal resistance: 2.2-0.9 K/W, Surafce: raw degreased aluminium (by the metre raw aluminium).
Technical specifications
Version extruded heatsink
Width 167 mm
Height 15 mm
Length 1000 mm
Material aluminum
Max. heat resistance 2.2 K/W
Min. heat resistance 0.9 K/W
Surface type natural aluminum
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
