10020065 | Fischer Elektronik

Extruded heatsink, 50 x 50 x 40 mm, 3.6 to 1.25 K/W, black anodized, 10020065

Order No.: 70B840
EAN: 4099889476019
MPN:
10020065
SK 434 50 SA
Series: SK
Fischer Elektronik
10020065 Fischer Elektronik Heat Sinks Image 1
10020065 Fischer Elektronik Heat Sinks Image 2
Image may differ
Print
Key Specification:
Min. heat resistance 1.25 K/W
Max. heat resistance 3.6 K/W
Length 50 mm
Width 50 mm
Show 3 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
8.0444 € *
Available: 25 pcs.
Leadtime: On Request **
Total Price:
8.04 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0444 €
10 pcs.
7.1162 €
100 pcs.
6.2951 €
250 pcs.
6.0452 €
1000 pcs.
5.6525 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

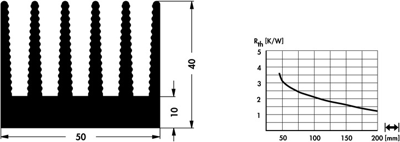

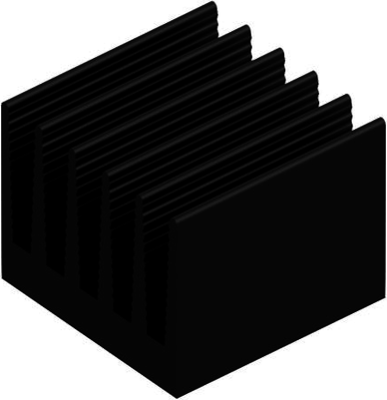

Profile heatsink, type Fischer SK 434.

Made of black anodized aluminum, no perforation.
Technical specifications
Version profile heatsink
Width 50 mm
Height 40 mm
Length 50 mm
Material die-cast aluminum
Max. heat resistance 3.6 K/W
Min. heat resistance 1.25 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
