10020158 | Fischer Elektronik

Extruded heatsink, 100 x 120 x 40 mm, 1.9 to 0.7 K/W, black anodized, 10020158

Order No.: 72B424
EAN: 4099889476323
MPN:
10020158
SK 442 100 SA
Series: SK
Fischer Elektronik

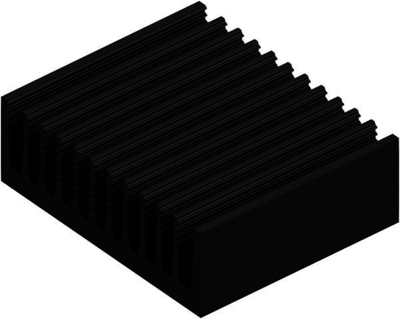

10020158 Fischer Elektronik Heat Sinks Image 1
10020158 Fischer Elektronik Heat Sinks Image 2
Image may differ
Print
Key Specification:
Min. heat resistance 0.7 K/W
Max. heat resistance 1.9 K/W
Length 100 mm
Width 120 mm
Show 3 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
27.5961 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
27.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
27.5961 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

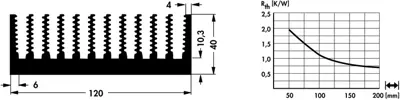

Profile heatsink, type Fischer SK 442.

Made of black anodized aluminum, no perforation.
Technical specifications
Version extruded heatsink
Width 120 mm
Height 40 mm
Length 100 mm
Material aluminum
Max. heat resistance 1.9 K/W
Min. heat resistance 0.7 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
