10020590 | Fischer Elektronik

Extruded heatsink, (L x W x H) 25 x 10.3 x 28 mm, 13.5 to 6.3 K/W, black anodized, 10020590

Order No.: 70B6550
EAN: 4099889475258
MPN:
10020590
SK 480 25 SA
Series: SK
10020590 Fischer Elektronik Heat Sinks Image 1
10020590 Fischer Elektronik Heat Sinks Image 2
Image may differ
Unit Price (€ / pc.)
1.9516 € *
Available: 141 pcs.
Leadtime: 2 Weeks **
Total Price:
19.52 € *
Price list
Quantity
Price per unit*
10 pcs.
1.9516 €
50 pcs.
1.7136 €
250 pcs.
1.4756 €
1000 pcs.
1.3090 €
2500 pcs.
1.1781 €
*incl. VAT plus shipping costs
**Subject to prior sale

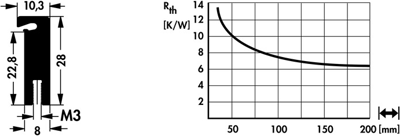

Profile heatsink for snap-on transistor retaining clips, type Fischer SK 480.

Made of black anodized aluminum. The retaining clip that is inserted or pressed into the provided is available on separate order.

Technical specifications
Ausführung Strangkühlkörper
Breite 10.3 mm
Geeignet für Einrast-Transistorhaltefeder
Höhe 28 mm
Länge 25 mm
Material Aluminium
max.Wärmewiderstand 13.5 K/W
min. Wärmewiderstand 6.3 K/W
Oberflächenart Schwarz eloxiert
Logistics
Ursprungsland DE
Zolltarifnummer 76042990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
