10020627 | Fischer Elektronik

Extruded heatsink, 37.5 x 30 x 45 mm, 5.7 to 2.2 K/W, black anodized, 10020627

Order No.: 70B6653
EAN: 4099889475340
MPN:
10020627
SK 481 37,5 SA
Series: SK
Fischer Elektronik

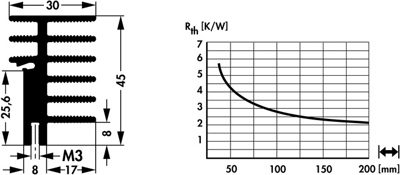

10020627 Fischer Elektronik Heat Sinks Image 1

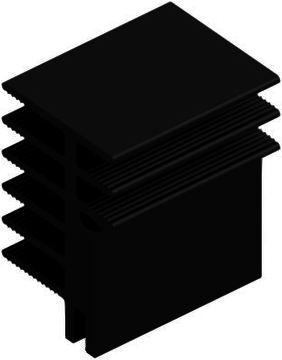

10020627 Fischer Elektronik Heat Sinks Image 2
Image may differ
Print
Key Specification:
Min. heat resistance 2.2 K/W
Max. heat resistance 5.7 K/W
Length 37.5 mm
Width 30 mm

Ordering Information:

Supplied without retaining clip, please order this separately
Show 5 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
2.023 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
2.02 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.023 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Profile heatsink for snap-on transistor retaining clips, type Fischer SK 481 SA.

Made of black anodized aluminum. The retaining clip that is inserted or pressed into the provided is available on separate order.
Technical specifications
Version extruded heatsink
Width 30 mm
Suitable for snap-in transistor retaining spring
Height 45 mm
Length 37.5 mm
Material die-cast aluminum
Max. heat resistance 5.7 K/W
Min. heat resistance 2.2 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
