10020629 | Fischer Elektronik

Extruded heatsink, 50 x 30 x 45 mm, 5.7 to 2.2 K/W, black anodized, 10020629

Order No.: 70B6654
EAN: 4099889475357
MPN:
10020629
SK 481 50 SA
Series: SK
Fischer Elektronik

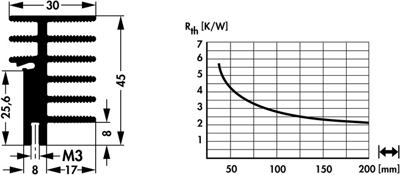

10020629 Fischer Elektronik Heat Sinks Image 1

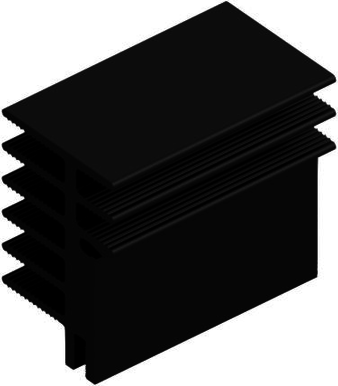

10020629 Fischer Elektronik Heat Sinks Image 2
Image may differ
Print
Key Specification:
Min. heat resistance 2.2 K/W
Max. heat resistance 5.7 K/W
Length 50 mm
Width 30 mm

Ordering Information:

Supplied without retaining clip, please order this separately
Show 5 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
4.0579 € *
Available: 5 pcs.
Leadtime: On Request **
Total Price:
4.06 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0579 €
10 pcs.
3.7485 €
50 pcs.
3.4034 €
100 pcs.
3.0583 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Profile heatsink for snap-on transistor retaining clips, type Fischer SK 481 SA.

Made of black anodized aluminum. The retaining clip that is inserted or pressed into the provided is available on separate order.
Technical specifications
Version extruded heatsink
Width 30 mm
Suitable for snap-in transistor retaining spring
Height 45 mm
Length 50 mm
Material die-cast aluminum
Max. heat resistance 5.7 K/W
Min. heat resistance 2.2 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
