10020641 | Fischer Elektronik

Extruded heatsink, 37 x 35.3 x 35 mm, 6.3 to 2.6 K/W, black anodized, 10020641

Order No.: 70B6661
EAN: 4099889475388
MPN:
10020641
SK 482 37,5 SA
Series: SK
Fischer Elektronik

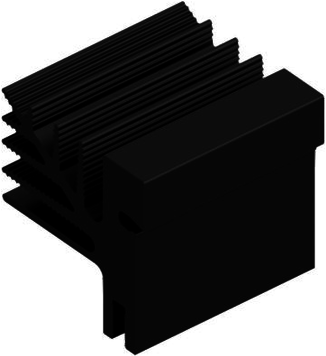

10020641 Fischer Elektronik Heat Sinks Image 1

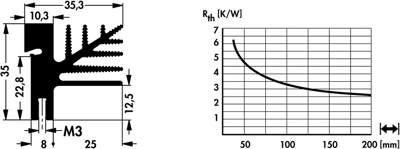

10020641 Fischer Elektronik Heat Sinks Image 2
Image may differ
Print
Key Specification:
Min. heat resistance 2.6 K/W
Max. heat resistance 6.3 K/W
Length 37 mm
Width 35.3 mm

Ordering Information:

Supplied without retaining clip, please order this separately
Show 3 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
5.2836 € *
Available: 13 pcs.
Leadtime: On Request **
Total Price:
5.28 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2836 €
10 pcs.
4.6648 €
100 pcs.
4.0936 €
250 pcs.
3.9270 €
1000 pcs.
3.6771 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Profile heatsink for snap-on transistor retaining clips, type Fischer SK 482 SA.

Made of black anodized aluminum. The retaining clip that is inserted or pressed into the provided is available on separate order.
Technical specifications
Version extruded heatsink
Width 35.3 mm
Suitable for snap-in transistor retaining spring
Height 35 mm
Length 37 mm
Material die-cast aluminum
Max. heat resistance 6.3 K/W
Min. heat resistance 2.6 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
