10020711 | Fischer Elektronik

Extruded heatsink, 100 x 52.3 x 28 mm, 6.5 to 1.4 K/W, black anodized, 10020711

Order No.: 70B6674
EAN: 4099889475449
MPN:
10020711
SK 487 100 SA
Series: SK
Fischer Elektronik

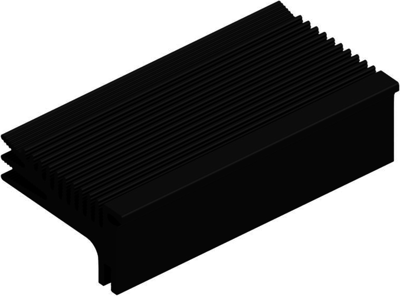

10020711 Fischer Elektronik Heat Sinks Image 1

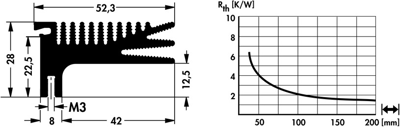

10020711 Fischer Elektronik Heat Sinks Image 2
Image may differ
Print
Key Specification:
Min. heat resistance 1.4 K/W
Max. heat resistance 6.5 K/W
Length 100 mm
Width 52.3 mm

Ordering Information:

Supplied without retaining clip, please order this separately
Show 4 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
4.8671 € *
Available: 202 pcs.
Leadtime: On Request **
Total Price:
4.87 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8671 €
10 pcs.
4.3792 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Profile heatsink for snap-on transistor retaining clips, type Fischer SK 487 SA.

Made of black anodized aluminum. The retaining clip that is inserted or pressed into the provided is available on separate order.
Technical specifications
Version extruded heatsink
Width 52.3 mm
Suitable for snap-in transistor retaining spring
Height 28 mm
Length 100 mm
Material die-cast aluminum
Max. heat resistance 6.5 K/W
Min. heat resistance 1.4 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
