10020802 | Fischer Elektronik

Extruded heatsink, 100 x 47.8 x 33 mm, 5.3 to 2.2 K/W, black anodized, 10020802

Order No.: 70B6684
EAN: 4099889475487
MPN:
10020802
SK 495 100 SA
Series: SK
Fischer Elektronik

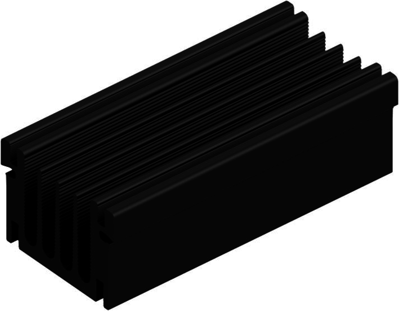

10020802 Fischer Elektronik Heat Sinks Image 1

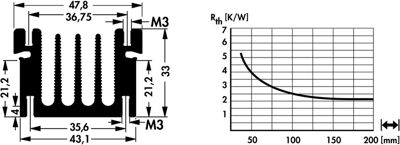

10020802 Fischer Elektronik Heat Sinks Image 2
Image may differ
Print
Key Specification:
Min. heat resistance 2.2 K/W
Max. heat resistance 5.3 K/W
Length 100 mm
Width 47.8 mm

Ordering Information:

Supplied without retaining clip, please order this separately

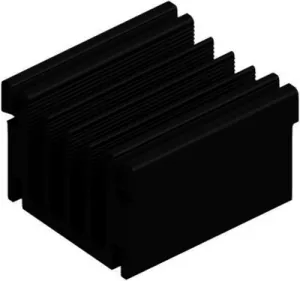

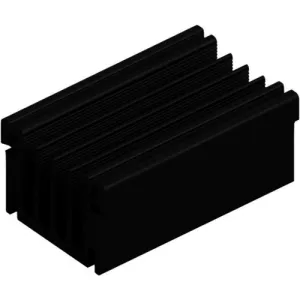

Show 4 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
5.4978 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
5.50 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.4978 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Profile heatsink for snap-on transistor retaining clips, type Fischer SK 495 SA.

Made of black anodized aluminum. The retaining clip that is inserted or pressed into the provided is available on separate order.
Technical specifications
Version extruded heatsink
Width 47.8 mm
Suitable for snap-in transistor retaining spring
Height 33 mm
Length 100 mm
Material die-cast aluminum
Max. heat resistance 5.3 K/W
Min. heat resistance 2.2 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
