10020992 | Fischer Elektronik

Extruded heatsink, 100 x 60 x 20 mm, 6.4 to 2.8 K/W, black anodized, 10020992

Order No.: 72B866
EAN: 4099889476552
MPN:
10020992
SK 51 100 SA
Series: SK
Fischer Elektronik
10020992 Fischer Elektronik Heat Sinks Image 1
10020992 Fischer Elektronik Heat Sinks Image 2
Image may differ
Print
Key Specification:
Min. heat resistance 2.8 K/W
Max. heat resistance 6.4 K/W
Length 100 mm
Width 60 mm
Show 3 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
5.9500 € *
Available: 20 pcs.
Leadtime: On Request **
Total Price:
5.95 € *
Price list
Quantity
Price per unit*
1 pcs.
5.9500 €
10 pcs.
5.2479 €
100 pcs.
4.6053 €
250 pcs.
4.4149 €
1000 pcs.
4.1293 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

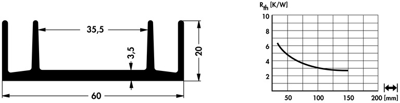

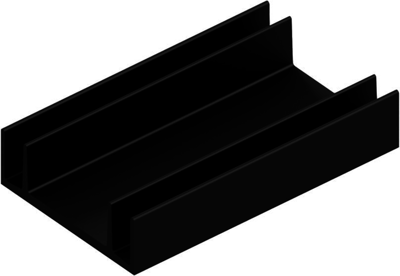

Profile heatsink, type Fischer SK 51.

Made of black anodized aluminum, no perforation. Meter section for orders as of 10 items on request.
Technical specifications
Version profile heatsink
Width 60 mm
Height 20 mm
Length 100 mm
Material die-cast aluminum
Max. heat resistance 6.4 K/W
Min. heat resistance 2.8 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
