10021525 | Fischer Elektronik

Extruded heatsink, 50 x 32.3 x 28 mm, 7.5 to 3.5 K/W, black anodized, 10021525

Order No.: 65B913
EAN: 4099889473667
MPN:
10021525
SK 574 50 SA
Series: SK
Fischer Elektronik

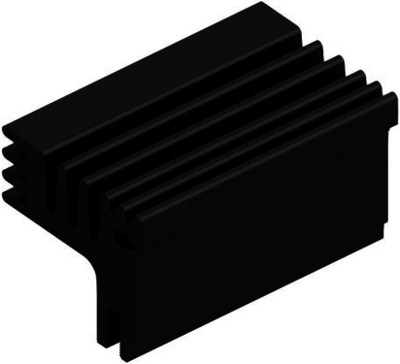

10021525 Fischer Elektronik Heat Sinks Image 1

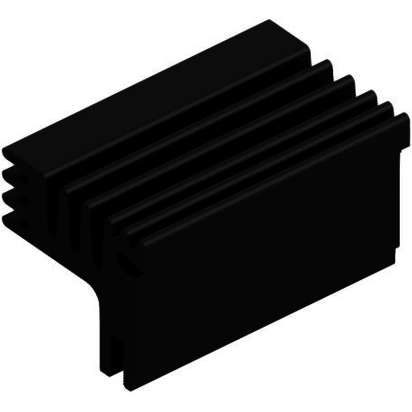

10021525 Fischer Elektronik Heat Sinks Image 2
Image may differ
Unit Price (€ / pc.)
4.2602 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.26 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
4.2602 €

Extruded heatsink, 10021525, Fischer Elektronik

Extruded heatsink for lock-in retaining spring, also for THFU 1-3+6+7, Profile threads, Surafce: black anodised.

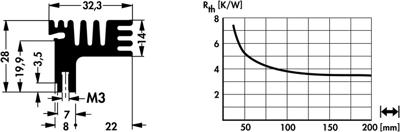

Technical specifications
Version extruded heatsink
Width 32.3 mm
Suitable for snap-in transistor retaining spring
Height 28 mm
Length 50 mm
Material aluminum
Max. heat resistance 7.5 K/W
Min. heat resistance 3.5 K/W
Surface type black anodized
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
