10022453 | Fischer Elektronik

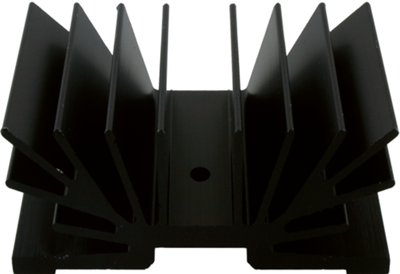

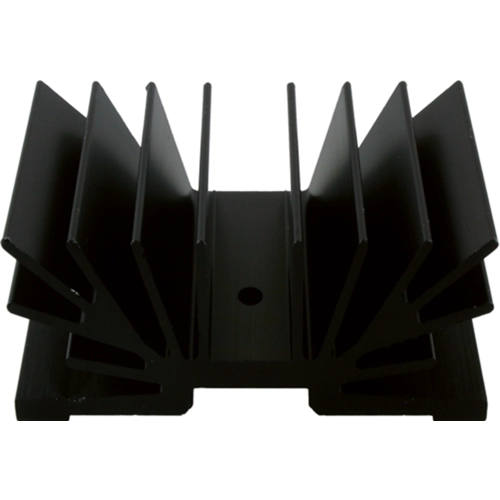

Extruded heatsink, 37.5 x 54 x 22.5 mm, 5.5 to 3.6 K/W, black anodized, 10022453

Order No.: 73B130
EAN: 4099889476668
MPN:
10022453
SK 65 37,5 SA 1 X M3
Series: SK
Fischer Elektronik
10022453 Fischer Elektronik Heat Sinks
Image may differ
Print
Key Specification:
Min. heat resistance 3.6 K/W
Max. heat resistance 5.5 K/W
Length 37.5 mm
Width 54 mm
Download Datasheet Technical specifications
Unit Price (€ / pc.)
3.8318 € *
Available: 40 pcs.
Leadtime: On Request **
Total Price:
3.83 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.8318 €
Description
Technical specifications
Download
Logistics
Compliance

Profile heatsink with 1 x M 3 perforation, type Fischer SK 65.

Made of black anodized aluminum.
Technical specifications
Version profile heatsink
Width 54 mm
Height 22.5 mm
Length 37.5 mm
Material die-cast aluminum
Max. heat resistance 5.5 K/W
Min. heat resistance 3.6 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
