10022468 | Fischer Elektronik

Extruded heatsink, 37.5 x 46 x 33 mm, 5.85 to 2.8 K/W, black anodized, 10022468

Order No.: 65B924
EAN: 4099889473759
MPN:
10022468
SK 68 37,5 SA
Series: SK
Fischer Elektronik

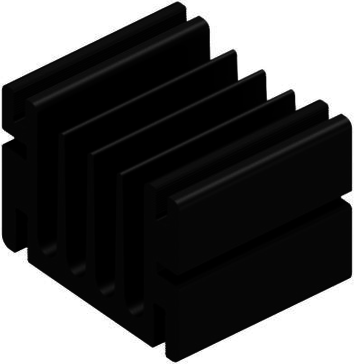

10022468 Fischer Elektronik Heat Sinks Image 1

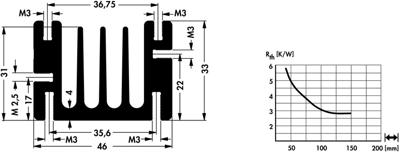

10022468 Fischer Elektronik Heat Sinks Image 2
Image may differ
Print
Key Specification:
Min. heat resistance 2.8 K/W
Max. heat resistance 5.85 K/W
Length 37.5 mm
Width 46 mm
Show 5 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
4.76 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
4.76 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
4.76 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Extruded heatsink, 10022468, Fischer Elektronik

Extruded heatsink for PCB mounting, Profile threads, Surface: black anodised.
Technical specifications
Version extruded heatsink
Width 46 mm
Suitable for PCB mounting
Height 33 mm
Length 37.5 mm
Material aluminum
Max. heat resistance 5.85 K/W
Min. heat resistance 2.8 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
