10022477 | Fischer Elektronik

Extruded heatsink, 100 x 46 x 33 mm, 5.85 to 2.8 K/W, black anodized, 10022477

Order No.: 73B154
EAN: 4099889476699
MPN:
10022477
SK 68 100 SA
Series: SK
Fischer Elektronik

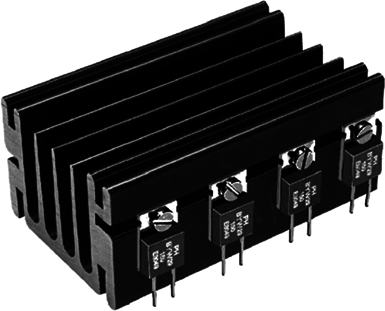

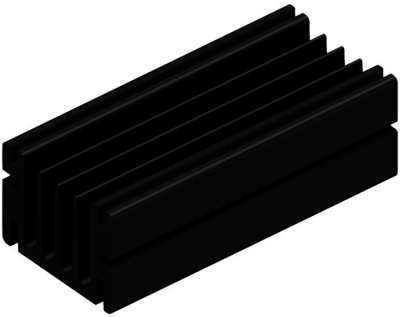

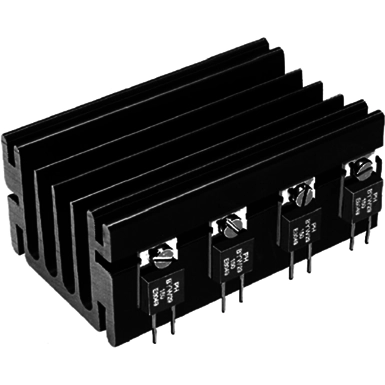

10022477 Fischer Elektronik Heat Sinks Image 1
10022477 Fischer Elektronik Heat Sinks Image 2
10022477 Fischer Elektronik Heat Sinks Image 3
Image may differ
Print
Key Specification:
Min. heat resistance 2.8 K/W
Max. heat resistance 5.85 K/W
Length 100 mm
Width 46 mm
Show 4 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
11.0908 € *
Available: 48 pcs.
Leadtime: On Request **
Total Price:
11.09 € *
Price list
Quantity
Price per unit*
1 pcs.
11.0908 €
10 pcs.
9.7580 €
100 pcs.
8.5680 €
250 pcs.
8.2348 €
1000 pcs.
7.6993 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Profile heatsink, type Fischer SK 68.

Made of black anodized aluminum, no perforation.
Technical specifications
Version extruded heatsink
Width 46 mm
Suitable for PCB mounting
Height 33 mm
Length 100 mm
Material aluminum
Max. heat resistance 5.85 K/W
Min. heat resistance 2.8 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
