10022512 | Fischer Elektronik

Extruded heatsink, 50 x 97 x 25 mm, 2.8 to 1.05 K/W, black anodized, 10022512

Order No.: 73B172
EAN: 4099889476743
MPN:
10022512
SK 72 50 SA
Series: SK
Fischer Elektronik
10022512 Fischer Elektronik Heat Sinks Image 1
10022512 Fischer Elektronik Heat Sinks Image 2
Image may differ
Print
Key Specification:
Min. heat resistance 1.05 K/W
Max. heat resistance 2.8 K/W
Length 50 mm
Width 97 mm
Show 5 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
4.9147 € *
Available: 72 pcs.
Leadtime: On Request **
Total Price:
4.91 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9147 €
10 pcs.
4.5101 €
50 pcs.
4.1055 €
100 pcs.
3.6890 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

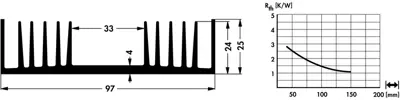

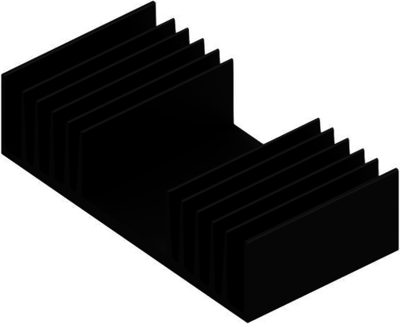

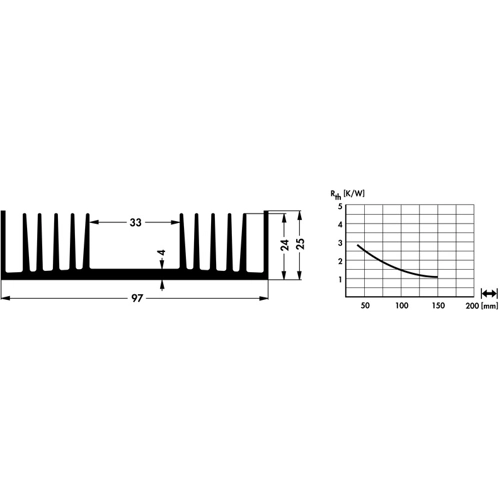

Profile heatsink, type Fischer SK 72.

Made of black anodized aluminum, no perforation.
Technical specifications
Version extruded heatsink
Width 97 mm
Height 25 mm
Length 50 mm
Material aluminum
Max. heat resistance 2.8 K/W
Min. heat resistance 1.05 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
