10022522 | Fischer Elektronik

Extruded heatsink, 1000 x 97 x 25 mm, 2.8 to 1.05 K/W, black anodized, 10022522

Order No.: 73B178
EAN: 4099889476774
MPN:
10022522
SK 72 1000 SA
Series: SK
Fischer Elektronik

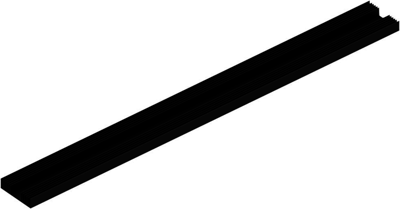

10022522 Fischer Elektronik Heat Sinks Image 1
10022522 Fischer Elektronik Heat Sinks Image 2
Image may differ
Print
Key Specification:
Min. heat resistance 1.05 K/W
Max. heat resistance 2.8 K/W
Length 1000 mm
Width 97 mm
Show 4 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
61.8681 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
61.87 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
61.8681 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

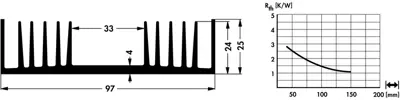

Profile heatsink, type Fischer SK 72.

Made of black anodized aluminum, no perforation.
Technical specifications
Version extruded heatsink
Width 97 mm
Height 25 mm
Length 1000 mm
Material aluminum
Max. heat resistance 2.8 K/W
Min. heat resistance 1.05 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
