10022630 | Fischer Elektronik

Extruded heatsink, 50 x 100 x 15 mm, 3.4 to 1.9 K/W, black anodized, 10022630

Order No.: 73B1792
EAN: 4099889476798
MPN:
10022630
SK 81 50 SA
Series: SK
Fischer Elektronik
10022630 Fischer Elektronik Heat Sinks Image 1
10022630 Fischer Elektronik Heat Sinks Image 2
Image may differ
Print
Key Specification:
Min. heat resistance 1.9 K/W
Max. heat resistance 3.4 K/W
Length 50 mm
Width 100 mm
Show 6 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
3.5343 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
3.53 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.5343 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

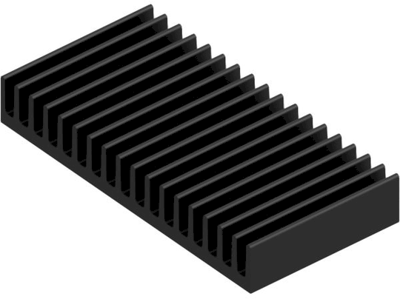

Profile heatsink, type Fischer SK 81.

Made of black anodized aluminum, no perforation.

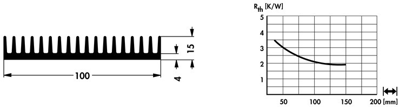

Technical specifications
Version extruded heatsink
Width 100 mm
Height 15 mm
Length 50 mm
Material aluminum
Max. heat resistance 3.4 K/W
Min. heat resistance 1.9 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
