10022653 | Fischer Elektronik

Extruded heatsink, 37.5 x 160 x 40 mm, 1.35 to 0.6 K/W, black anodized, 10022653

Order No.: 73B194
EAN: 4099889476859
MPN:
10022653
SK 85 37,5 SA
Series: SK
Fischer Elektronik
10022653 Fischer Elektronik Heat Sinks Image 1
10022653 Fischer Elektronik Heat Sinks Image 2
Image may differ
Print
Key Specification:
Min. heat resistance 0.6 K/W
Max. heat resistance 1.35 K/W
Length 37.5 mm
Width 160 mm
Show 3 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
11.6144 € *
Available: 41 pcs.
Leadtime: On Request **
Total Price:
11.61 € *
Price list
Quantity
Price per unit*
1 pcs.
11.6144 €
10 pcs.
10.6862 €
50 pcs.
9.7223 €
100 pcs.
8.7584 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

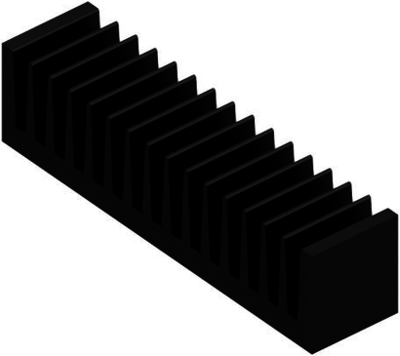

Profile heatsink, type Fischer SK 85.

Made of black anodized aluminum, no perforation.

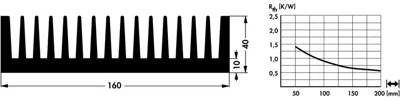

Technical specifications
Version extruded heatsink
Width 160 mm
Height 40 mm
Length 37.5 mm
Material aluminum
Max. heat resistance 1.35 K/W
Min. heat resistance 0.6 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
