10022692 | Fischer Elektronik

Extruded heatsink, 100 x 80 x 78.6 mm, 1.3 to 0.6 K/W, black anodized, 10022692

Order No.: 78B160
EAN: 4099889476941
MPN:
10022692
SK 89 100 KL SSR 2
Series: SK
Fischer Elektronik
10022692 Fischer Elektronik Heat Sinks
Image may differ
Print
Key Specification:
Min. heat resistance 0.6 K/W
Max. heat resistance 1.3 K/W
Length 100 mm
Width 80 mm
Show 3 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
33.7365 € *
Available: 1 pcs.
Leadtime: On Request **
Total Price:
33.74 € *
Price list
Quantity
Price per unit*
1 pcs.
33.7365 €
10 pcs.
31.3684 €
25 pcs.
28.8575 €
50 pcs.
26.2752 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Extruded heatsink for DIN mounting rails, type SK 89 KL SSR.

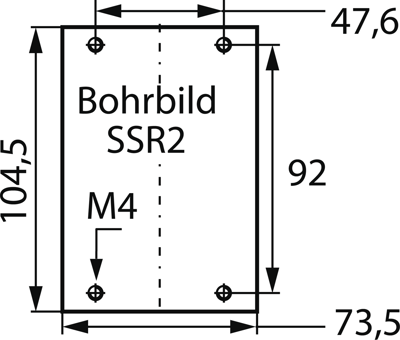

Complete with mounting rail clip KL 35 and M 4 tapped holes in the heatsink.
Technical specifications
Version extruded heatsink
Width 80 mm
Height 78.6 mm
Length 100 mm
Material die-cast aluminum
Max. heat resistance 1.3 K/W
Min. heat resistance 0.6 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
