10022721 | Fischer Elektronik

Extruded heatsink, 100 x 100 x 40 mm, 2.15 to 0.9 K/W, natural aluminum, 10022721

Order No.: 65B933
EAN: 4099889473827
MPN:
10022721
SK 92 100 AL
Series: SK
Fischer Elektronik
10022721 Fischer Elektronik Heat Sinks Image 1
10022721 Fischer Elektronik Heat Sinks Image 2
10022721 Fischer Elektronik Heat Sinks Image 3
Image may differ
Print
Key Specification:
Min. heat resistance 0.9 K/W
Max. heat resistance 2.15 K/W
Length 100 mm
Width 100 mm
Show 6 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
9.52 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
9.52 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
9.52 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

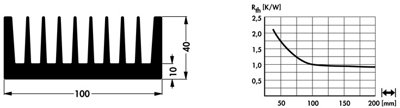

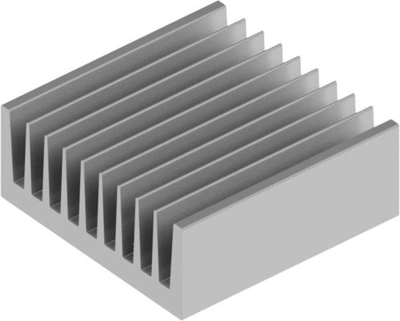

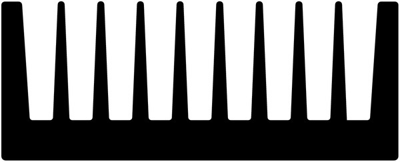

Standard extruded heatsink, 10022721, Fischer Elektronik

Standard extruded heatsink with thermal resistance: 2.15-0.9 K/W, Surafce: raw degreased aluminium (by the metre raw aluminium).
Technical specifications
Version extruded heatsink
Width 100 mm
Height 40 mm
Length 100 mm
Material aluminum
Max. heat resistance 2.15 K/W
Min. heat resistance 0.9 K/W
Surface type natural aluminum
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
