10022722 | Fischer Elektronik

Extruded heatsink, 100 x 100 x 40 mm, 2.15 to 1.2 K/W, black anodized, 10022722

Order No.: 72B364
EAN: 4099889476224
MPN:
10022722
SK 92 100 SA
Series: SK
Fischer Elektronik
10022722 Fischer Elektronik Heat Sinks Image 1
10022722 Fischer Elektronik Heat Sinks Image 2
Image may differ
Print
Key Specification:
Min. heat resistance 1.2 K/W
Max. heat resistance 2.15 K/W
Length 100 mm
Width 100 mm
Show 3 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
22.3482 € *
Available: 13 pcs.
Leadtime: 11 Weeks **
Total Price:
22.35 € *
Price list
Quantity
Price per unit*
1 pcs.
22.3482 €
10 pcs.
19.6588 €
50 pcs.
18.3260 €
150 pcs.
17.5287 €
500 pcs.
16.6362 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

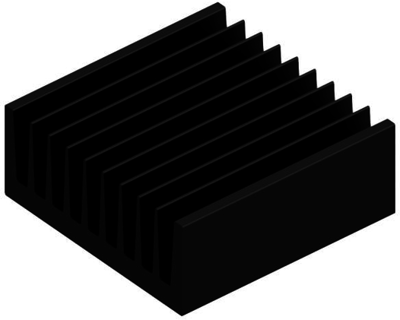

Profile heatsink, type Fischer SK 92.

Made of black anodized aluminum, no perforation.
Technical specifications
Version profile heatsink
Width 100 mm
Height 40 mm
Length 100 mm
Material die-cast aluminum
Max. heat resistance 2.15 K/W
Min. heat resistance 1.2 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
