10035027 | Fischer Elektronik

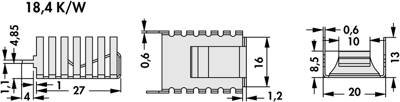

Clip-on heatsink, 32 x 20 x 13 mm, 18.4 K/W, solderable surface, 10035027

Order No.: 65B320
EAN: 4099889471342
MPN:
10035027
FK 243 MI 247 V
Series: FK
Fischer Elektronik
10035027 Fischer Elektronik Heat Sinks
Image may differ
Print
Key Specification:
Max. heat resistance 18.4 K/W
Length 32 mm
Width 20 mm
Show 4 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.3209 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
1.32 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.3209 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Snap-on heatsink, type Fischer FK.

For TO 218, TO 220, TO 247, TO 248 and SIP Multiwatt, made of copper with solderable finish.

With solder lug for vertical installation, type FK.
Technical specifications
Version clip-on heatsink
Width 20 mm
Suitable for TO220, TO248, TO247, TO218, SIP Multiwatt
Height 13 mm
Length 32 mm
Material copper
Max. heat resistance 18.4 K/W
Surface type solderable surface
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76169990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
