10035034 | Fischer Elektronik

Copper heatsink, 13 x 26 x 10 mm, 22.8 K/W, solderable surface, 10035034

Order No.: 70B482
EAN: 4099889475081
MPN:
10035034
FK 244 13 D2 PAK
Series: FK
Fischer Elektronik
10035034 Fischer Elektronik Heat Sinks Image 1
10035034 Fischer Elektronik Heat Sinks Image 2
Image may differ
Print
Key Specification:
Max. heat resistance 22.8 K/W
Length 13 mm
Width 26 mm
Show 6 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.3566 € *
Available: 949 pcs.
Leadtime: On Request **
Total Price:
1.36 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3566 €
10 pcs.
1.2733 €
50 pcs.
1.1662 €
100 pcs.
1.0710 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

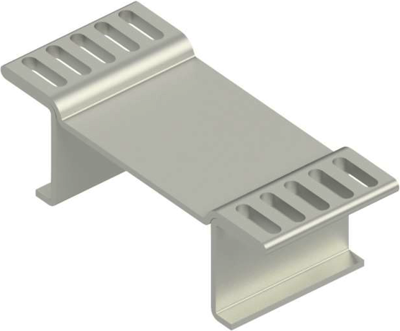

SMD profile heatsink for D PAK and others, type Fischer FK 244 13.

For D PAK (TO 252), D2 PAK (TO 263), D3 PAK (TO 268), SO-8, SO-14, SO-16, Power SO-10, SOT 223, made of copper, with solderable surface.

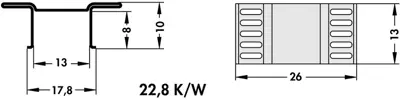

Technical specifications
Version profile heatsink
Width 26 mm
Suitable for SOT223, TO268, SO14, TO263, Power SO10, TO252, SO16, SO8
Height 10 mm
Length 13 mm
Material copper
Max. heat resistance 22.8 K/W
Surface type solderable surface
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 74198090
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
