10038393 | Fischer Elektronik

Fin heat sink, 100 x 100 x 58 mm, 0.82 to 0.24 K/W, 10038393

Order No.: 66B100
EAN: 4099889474176
MPN:
10038393
KTE 1
Series: KTE
Fischer Elektronik

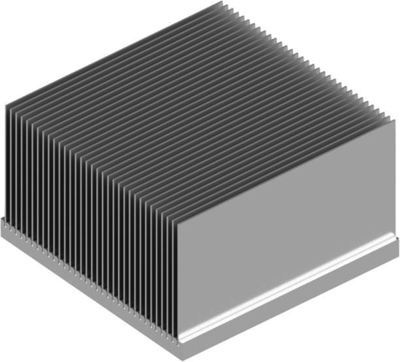

10038393 Fischer Elektronik Heat Sinks Image 1

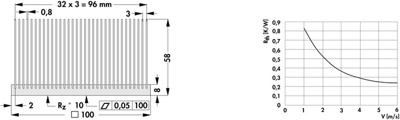

10038393 Fischer Elektronik Heat Sinks Image 2
Image may differ
Print
Key Specification:
Min. heat resistance 0.24 K/W
Max. heat resistance 0.82 K/W
Length 100 mm
Width 100 mm
Download Datasheet Technical specifications
Unit Price (€ / pc.)
69.9244 € *
Available: 9 pcs.
Leadtime: On Request **
Total Price:
69.92 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
69.9244 €
Description
Technical specifications
Download
Logistics
Compliance

Heatsink for Peltier elements, type Fischer KTE 1.

Made of plain-colored aluminum, degreased.
Technical specifications
Version Fin heat sink
Width 100 mm
Suitable for thermoelectric elements
Height 58 mm
Length 100 mm
Material die-cast aluminum
Max. heat resistance 0.82 K/W
Min. heat resistance 0.24 K/W
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76169910
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
