10102591 | Fischer Elektronik

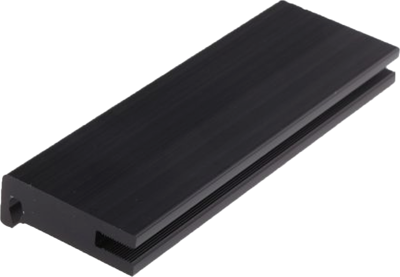

Extruded heatsink, 37.5 x 10.3 x 20 mm, 39 to 31 K/W, black anodized, 10102591

Order No.: 70B6562
EAN: 4099889475296
MPN:
10102591
SK 512 37,5 SA
Series: SK
Fischer Elektronik
10102591 Fischer Elektronik Heat Sinks
Image may differ
Print
Key Specification:
Min. heat resistance 31 K/W
Max. heat resistance 39 K/W
Length 37.5 mm
Width 10.3 mm

Ordering Information:

Supplied without retaining clip, please order this separately
Show 3 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.6779 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
1.68 € *
Price list
Quantity
Price per unit*
10 pcs.
1.6779 €
50 pcs.
1.4756 €
250 pcs.
1.2733 €
1000 pcs.
1.1186 €
2500 pcs.
1.0234 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Profile heatsink for snap-on transistor retaining clips, type Fischer SK 512.

Made of black anodized aluminum. The retaining clip that is inserted or pressed into the provided is available on separate order.
Technical specifications
Version extruded heatsink
Width 10.3 mm
Height 20 mm
Length 37.5 mm
Material die-cast aluminum
Max. heat resistance 39 K/W
Min. heat resistance 31 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
