10151949 | Fischer Elektronik

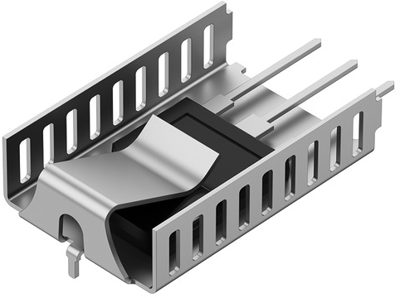

Clip-on heatsink, 36 x 23 x 9 mm, 19.6 K/W, solderable surface, 10151949
Unit Price (€ / pc.)
1.7017 € *
Available: 0 pcs.
Leadtime: On Request **
Heat sink, FK 273 MI 247 H, Fischer Elektronik
Heatsink pluggable
Features
- Universal clip-on heatsinks for design TO 218, TO 247, TO 248, SIP-Multiwatt and similar
- Integrated clamp geometry for a secure fixing of the device
- Angled designs with enlarged surface
- Modifications and special designs according to customer’s specifications
Technical data
- Version: Clip-on Heat sink
- Material: Cu
- Length: 40 mm
- Suitable for: TO220|TO248|TO247|TO218|SIP Multiwatt

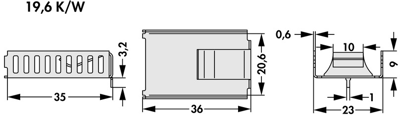

Technical specifications
| Ausführung | Aufsteckkühlkörper | |
| Breite | 23 mm | |
| Geeignet für | TO220, TO248, TO247, TO218, SIP Multiwatt | |
| Höhe | 9 mm | |
| Länge | 36 mm | |
| Material | Kupfer | |
| max.Wärmewiderstand | 19.6 K/W | |
| Oberflächenart | lötfähige Oberfläche |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 74152900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
