10007458 | Fischer Elektronik

Socket header, 26 pole, pitch 2.54 mm, straight, gray, 10007458

Order No.: 56F804
EAN: 4099891002138
MPN:
10007458
PV 26 G
Series: PV

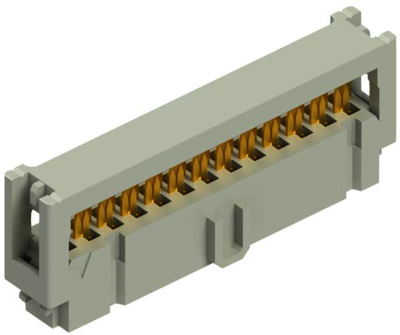

10007458 Fischer Elektronik PCB Connection Systems Image 1

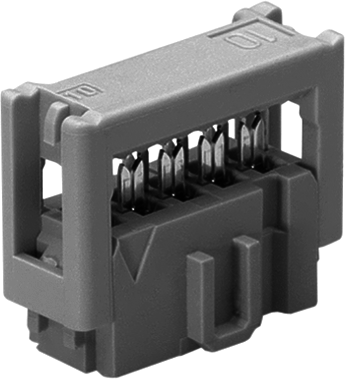

10007458 Fischer Elektronik PCB Connection Systems Image 2
10007458 Fischer Elektronik PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
4.6410 € *
Available: 157 pcs.
Leadtime: 1 Week **
Total Price:
4.64 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6410 €
10 pcs.
4.2602 €
50 pcs.
3.8794 €
100 pcs.
3.4867 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female connectors for ribbon cables, type Fischer PV.

For insertion on pin headers (e.g. type 511.030, TE ConnectivityAMP Modu II etc.), with automatic insulation displacement terminals for wires from AWG 28 to 30 and max. insulation diameter of 1.1 mm; Contact finish: gold-plated on nickel primer. Insulator: polycarbonate. Color: gray, RAL 7032. Operating temperatures: –55 to +125 °C. Rated current: 2.0 A. Rated voltage: 250 Volt.

Technical attributes (type, number of poles, dimensions): PV 26, 26-pole, A 37.60/B 30.48 mm

Technical specifications
Connection Schneidklemmanschluss
Connection plating verzinnt
Number of rows 2
Version Buchsenleiste
Additional parts bestückt
Colour grau
Contact type Buchse
contact surface vergoldet
Rated voltage 250 V
Rated current 2 A
Orientation gerade
Pin number 26-polig
Grid 2.54 mm
Logistics
Country of origin CH
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
