10026908 | Fischer Elektronik

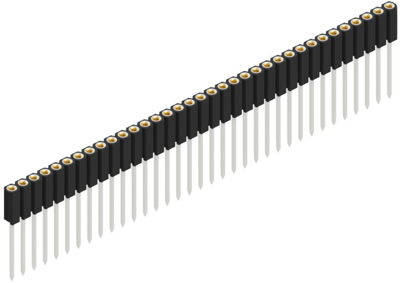

Socket header, 35 pole, pitch 2.54 mm, straight, 10026908
Unit Price (€ / pc.)
11.4716 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
11.47 € *
Price list
Quantity
Price per unit*
1 pcs.
11.4716 €
10 pcs.
10.5553 €
50 pcs.
9.6033 €
100 pcs.
8.7346 €
*incl. VAT plus shipping costs
**Subject to prior sale
Female socket, 10026908, Fischer Elektronik
Female socket for 0.635 mm and up to 0.85 mm Ø, with aligned Wire-Wrap contact pins. No capilliary action when soldering due to protected contact insert.
Technical specifications
| Connection | solder connection | |
| Connection plating | gold-plated | |
| Number of rows | 1 | |
| Version | socket header | |
| Additional parts | equipped | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 150 V | |
| Rated current | 3 A | |
| Orientation | straight | |
| Pin number | 35 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
