10027257 | Fischer Elektronik

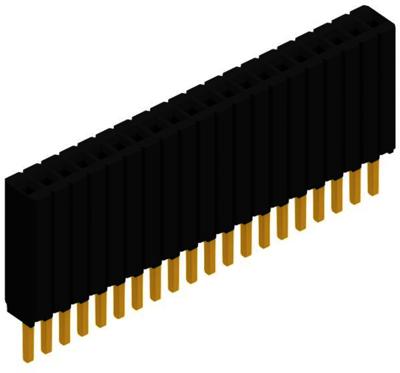

Socket header, 20 pole, pitch 1.27 mm, straight, black, 10027257
Unit Price (€ / pc.)
4.1174 € *
Available: 93 pcs.
Leadtime: 8 Weeks **
Total Price:
4.12 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1174 €
10 pcs.
3.6295 €
100 pcs.
3.1773 €
250 pcs.
3.0702 €
1000 pcs.
2.8560 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket headers for PCB mounting, type Fischer BLM KG 1.

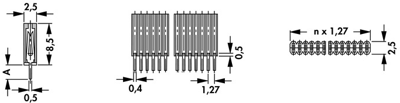

Straight. solder pin length A 3.0 mm; Grid: 1.27 mm. Interruptible, single-row, with 0.4 x 0.5 mm square pins. For soldering into PCBs. Rated current: 1.5 A. Rated voltage: 125 VAC. Test voltage: 500 V. Insulator: PPS, glass fiber-reinforced. Inflammability class: UL 94 V-0. Insulation resistance: at least 10 Gohm. Contacts: fork contacts, 0.2 µm gold-plated on nickel primer. Contact resistance: max. 10 mohm. Holding forces insertion/ejection: at least 1.3/1.1 N. Operating temperatures: –40 to +200 °C.
Technical attributes (type, number of poles): BLM KG 1, 20–pole
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Farbe | schwarz | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | vergoldet | |
| Nennspannung | 125 V | |
| Nennstrom | 1.5 A | |
| Orientierung | gerade | |
| Polzahl | 20-polig | |
| Rastermaß | 1.27 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
