10031638 | Fischer Elektronik

DIL connector, 14 pole, pitch 2.54 mm, straight, black, 10031638

Order No.: 50F302
EAN: 4099889997668
MPN:
10031638
DILS 14 GO
Series: DILS
Fischer Elektronik

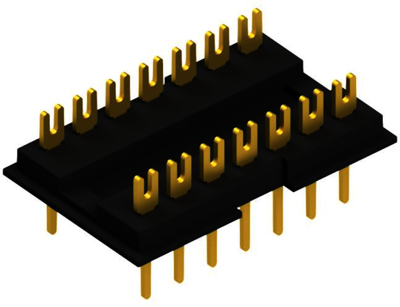

10031638 Fischer Elektronik PCB Connection Systems Image 1
10031638 Fischer Elektronik PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
2.4038 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.40 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4038 €
10 pcs.
2.2134 €
50 pcs.
2.0111 €
100 pcs.
1.8207 €
*incl. VAT plus shipping costs
**Subject to prior sale

DiL plugs, type Fischer Dils.

2.54 mm grid, with spring bronze contacts, gold-plated on nickel primer; Current loading per contact: max. 1.0 A. Plug-in platform and housing: polysulphone. Dielectric strength: 1.0 kV.

Plug inserts, type Dils.

Technical attributes (number of poles, dimensions C/L/B): 14-pole, C 7.62/L 20/B 12.5 mm

Technical specifications
Connection solder pin
Connection plating tin-plated
Number of rows 2
Version DIL connector
Additional parts equipped
Colour black
Contact type socket/pin
contact surface gold-plated
Rated voltage 150 V
Rated current 1.5 A
Orientation straight
Pin number 14 pole
Grid 2.54 mm
Logistics
Country of origin DE
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
