10031655 | Fischer Elektronik

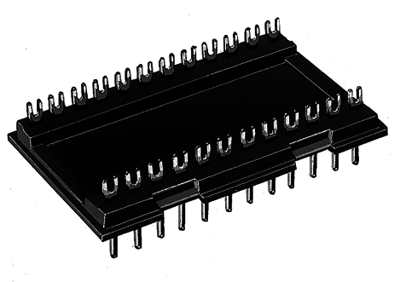

DIL connector, 24 pole, pitch 2.54 mm, straight, black, 10031655
Unit Price (€ / pc.)
5.9500 € *
Available: 30 pcs.
Leadtime: On Request **
Total Price:
5.95 € *
Price list
Quantity
Price per unit*
1 pcs.
5.9500 €
10 pcs.
5.4740 €
50 pcs.
4.9861 €
100 pcs.
4.4863 €
*incl. VAT plus shipping costs
**Subject to prior sale
DiL plugs, type Fischer Dils.
2.54 mm grid, with spring bronze contacts, gold-plated on nickel primer; Current loading per contact: max. 1.0 A. Plug-in platform and housing: polysulphone. Dielectric strength: 1.0 kV.
Plug inserts, type Dils.
Technical attributes (number of poles, dimensions C/L/B): 24-pole, C 15.24/L 32.8/B 20.1 mm
Technical specifications
| Connection | solder pin | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Version | DIL connector | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | socket/pin | |
| contact surface | gold-plated | |
| Rated voltage | 150 V | |
| Rated current | 1.5 A | |
| Orientation | straight | |
| Pin number | 24 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
