10049358 | Fischer Elektronik

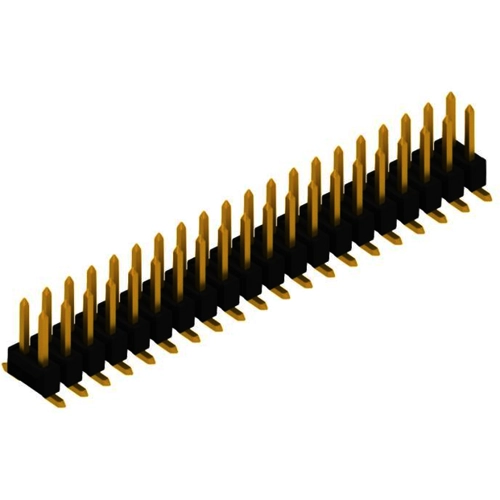

Pin header, 40 pole, pitch 2.54 mm, straight, black, 10049358
Unit Price (€ / pc.)
3.8318 € *
Available: 0 pcs.
Next delivery: 64 pcs. on 2025-03-03
Leadtime: On Request **
Total Price:
3.83 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8318 €
10 pcs.
3.3677 €
100 pcs.
2.9512 €
250 pcs.
2.8441 €
1000 pcs.
2.6537 €
*incl. VAT plus shipping costs
**Subject to prior sale

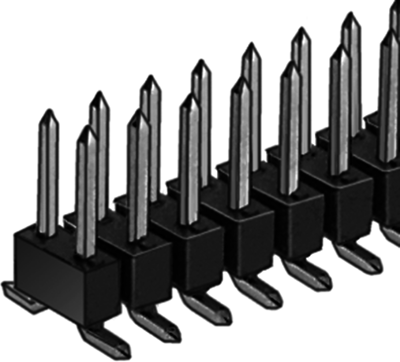

Pin headers, gold-plated, for SMD mounting, type Fischer SL.
2.54 mm grid, for surface mounting, single and dual row, with 0.635 x 0.635 mm square pins; Rated current: 3.0 A. Rated voltage: 250 VAC. Test voltage: 2000 V. Insulator: PA 4.6 GF. Inflammability class: UL 94 V-0. Insulation resistance: at least 1000 Gohm. Contact material: CuSn alloy. Contact finish: 0.2 µm gold on nickel primer. Contact resistance: max. 5.0 Mohm. Operating temperatures: –40 to +163 °C (briefly up to +260 °C).
Straight, type SL.

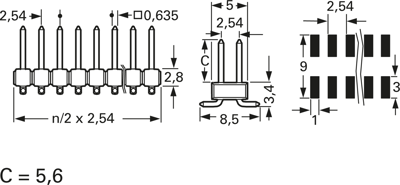

Technical attributes (type, number of poles, version, dimension C): SL 11 SMD 052/40 G, 40–pole, dual–row, C 5.6 mm
Technical specifications
| Anschluss | SMD | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 1 | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Farbe | schwarz | |
| Kontaktart | Stift | |
| Kontaktoberfläche | vergoldet | |
| Nennspannung | 250 V | |
| Nennstrom | 3 A | |
| Orientierung | gerade | |
| Polzahl | 40-polig | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
