BL15SMD08918BSM | Fischer Elektronik

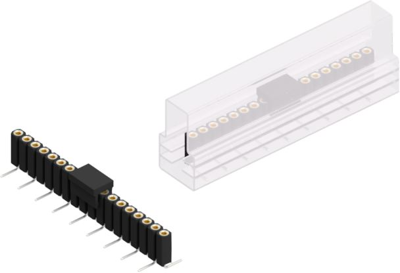

Socket header, 18 pole, pitch 2.54 mm, angled, BL15SMD08918BSM
Unit Price (€ / pc.)
7.2471 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
7.25 € *
Price list
Quantity
Price per unit*
1 pcs.
7.2471 €
10 pcs.
6.6640 €
50 pcs.
6.0690 €
100 pcs.
5.5216 €
*incl. VAT plus shipping costs
**Subject to prior sale
Female socket, BL15SMD08918BSM, Fischer Elektronik
Female socket for 0.635 mm and up to 0.85 mm Ø.
Technical specifications
| Connection | solder connection | |
| Connection plating | gold-plated | |
| Number of rows | 1 | |
| Version | socket header | |
| Additional parts | equipped | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 150 V | |
| Rated current | 3 A | |
| Orientation | angled | |
| Pin number | 18 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
