10037280 | Fischer Elektronik
L-0, holder with strap
Unit Price (€ / pc.)
4.6886 € *
Available: 7 pcs.
Leadtime: On Request **
Total Price:
4.69 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6886 €
10 pcs.
4.3078 €
50 pcs.
3.9270 €
100 pcs.
3.5343 €
*incl. VAT plus shipping costs
**Subject to prior sale
Card holder, 10037280, Fischer Elektronik
Compliant with IBM specs. Holder with a bead in the upper bending and a 5° angle in the lower strap tongue. With the provided sections it offers a high stability mechanical connection for I/O-connectors and other components on the PCB. The card holders are inserted as backplane slot metal covers of PC cases without direct mounting strap connection to the PCB; Material: stainless steel (V2A), 0.8-mm thickness.
Without recesses, type KHPC-.

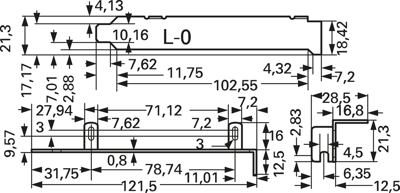

Type: L-0, holder with strap.
Technical specifications
| Ausführung | Kartenhalter | |
| Farbe | grau | |
| Material | Edelstahl | |
| Plattenstärke | 0.8 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 84733080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
