10037348 | Fischer Elektronik
O-005, holder without strap
Unit Price (€ / pc.)
4.2007 € *
Available: 0 pcs.
Leadtime: On Request **
Card holder, 10037348, Fischer Elektronik

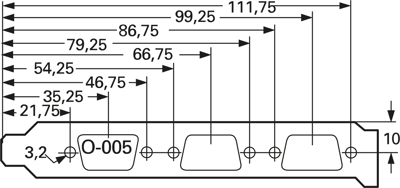

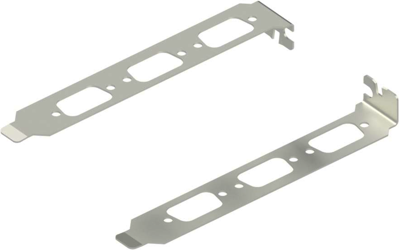

Compliant with IBM specs. Holder with a bead in the upper bending and a 5° angle in the lower strap tongue. With the provided sections it offers a high stability mechanical connection for I/O-connectors and other components on the PCB. The card holders are inserted as backplane slot metal covers of PC cases without direct mounting strap connection to the PCB; Material: stainless steel (V2A), 0.8-mm thickness.
For 3 sub-D connector, 9-pole, type KHPC-.
Type: O-005, holder without strap.
Technical specifications
| Ausführung | Kartenhalter | |
| Farbe | grau | |
| Material | Edelstahl | |
| Plattenstärke | 0.8 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 84733080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
