10044148 | Fischer Elektronik
Guide rails for circuit board, 10044148
Unit Price (€ / pc.)
2.7846 € *
Available: 166 pcs.
Leadtime: On Request **
Total Price:
2.78 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7846 €
25 pcs.
2.3681 €
100 pcs.
2.1896 €
250 pcs.
2.0944 €
1000 pcs.
1.9040 €
*incl. VAT plus shipping costs
**Subject to prior sale

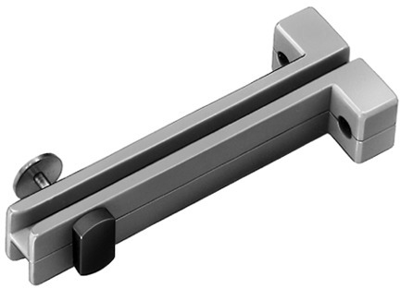

Guide rails, 10044148, Fischer Elektronik
Interlocking version with metal retainer. Interlocked by pressing on the plastic notch respectively metal button to prevent any conductive connection to the PCB that has to be equipped with an interlocking groove; Material: polyamide GV. Inflammability class: UL 94 V-0. Operating temperatures: -40 to +205 °C. Version: vertical, with mounting flange (2 mounting holes).
Technical attributes (type, dimensions assembly height and A groove height): MSVL/50, 50 mm, A 42 mm.
Technical specifications
| Ausführung | Führungsschienen | |
| Farbe | grau | |
| Material | PA |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 39269097 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
