10044916 | Fischer Elektronik

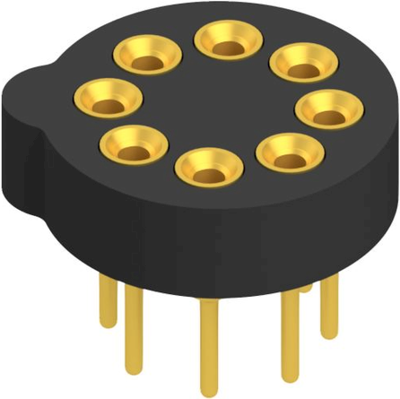

Semiconductor socket, 8 pole, pitch 5.84 mm , CuZn-alloy for TO-5, 10044916
Unit Price (€ / pc.)
5.5097 € *
Available: 70 pcs.
Leadtime: 8 Weeks **
Total Price:
5.51 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5097 €
10 pcs.
4.8433 €
100 pcs.
4.2483 €
250 pcs.
4.0698 €
1000 pcs.
3.8199 €
*incl. VAT plus shipping costs
**Subject to prior sale
Semiconductor sockets, type Fischer PF.
Suitable for TO 5, extra-flat design (3.0 mm), for PCB mounting. Contacts: gold-plated, Insulating body: polysulphone GV. Operating temperatures: - 65 to +180 °C. Diameter: 9.5 mm.
Technical attributes (type, number of poles, maximum contact pitch (by diameter). Contact finish): PF 58 23 G, 8-pole, 5.84 mm, gold-plated

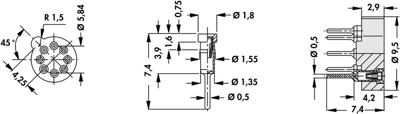

Technical specifications
| Ausführung | Halbleiterfassung | |
| Breite | 2.9 mm | |
| Durchmesser | 9.5 mm | |
| Geeignet für | TO-5 | |
| Höhe | 7.4 mm | |
| Kontaktmaterial | CuZn-Legierung | |
| Länge | 9.5 mm | |
| Material | PA/Glasfasern | |
| max. Temperatur | 163 °C | |
| min. Temperatur | -40 °C | |
| Nennspannung | 60 V | |
| Nennstrom | 1.5 A | |
| Polzahl | 8-polig | |
| Rastermaß | 5.84 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
