10045917 | Fischer Elektronik
IC contact spring strip, 20 pole, pitch 2.54 mm , CuZn-alloy for DIL-IC, 10045917
Unit Price (€ / pc.)
8.1515 € *
Available: 5 pcs.
Next delivery: 100 pcs. on 2025-03-11
Leadtime: On Request **
Total Price:
8.15 € *
Price list
Quantity
Price per unit*
1 pcs.
8.1515 €
10 pcs.
7.1757 €
100 pcs.
6.2832 €
250 pcs.
6.0452 €
1000 pcs.
5.6644 €
*incl. VAT plus shipping costs
**Subject to prior sale

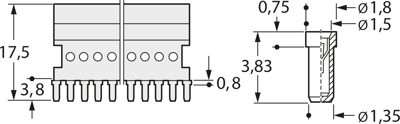

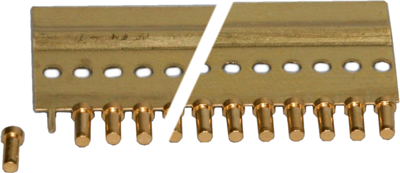

IC spring socket strips with solder sockets, type Fischer SIL 1 G 20.
20-pole, for direct soldering on PCBs; Contact material: CuZn alloy. Finish: nickel-plated and additionally gold-plated. Grid: 2.54 mm.
Type: SIL 1 G 20, spring socket strip
Technical specifications
| Ausführung | IC-Kontaktfederstreifen | |
| Geeignet für | DIL-IC | |
| Höhe | 17.5 mm | |
| Kontaktmaterial | CuZn-Legierung | |
| Nennspannung | 60 V | |
| Nennstrom | 1.5 A | |
| Polzahl | 20-polig | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
