10064974 | Fischer Elektronik

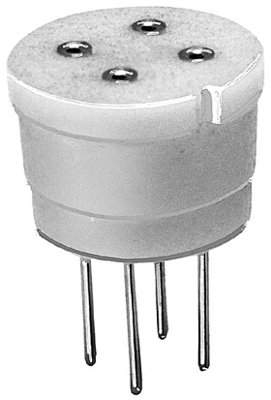

Semiconductor socket, 4 pole, CuZn-alloy for TO-5, 10064974
Unit Price (€ / pc.)
9.2463 € *
Available: 249 pcs.
Leadtime: 2 Weeks **
Total Price:
9.25 € *
Price list
Quantity
Price per unit*
1 pcs.
9.2463 €
10 pcs.
8.1396 €
100 pcs.
7.1400 €
250 pcs.
6.8663 €
1000 pcs.
6.4141 €
*incl. VAT plus shipping costs
**Subject to prior sale
Semiconductor sockets, type Fischer TF.
For TO 5; Insulating body: PTFE (Teflon) UL 94 SE-0. Contact material: nickel-plated brass, additionally gold-plated. Rated current: 1.5 A. Rated voltage: 100 VDC. Operating temperatures: –200 to +260 °C.
Technical attributes (type, number of poles): TF 54, 4-pole
Technical specifications
| Version | semiconductor socket | |
| Width | 7.3 mm | |
| Suitable for | TO-5 | |
| Height | 10.3 mm | |
| Contact material | CuZn-alloy | |
| Material | PTFE | |
| max. operating temperature | 260 °C | |
| min. operating temperature | -200 °C | |
| Rated voltage | 100 V | |
| Rated current | 1.5 A | |
| Pin number | 4 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
