10005983 | Fischer Elektronik
Short circuit jumper, pitch 2.54 mm, 250 V, 1.5 A, gold-plated, red, 10005983
Unit Price (€ / pc.)
0.2047 € *
Available: 1,562 pcs.
Next delivery: 2,800 pcs. on 2025-04-22
Leadtime: 14 Weeks **
Total Price:
5.12 € *
Price list
Quantity
Price per unit*
25 pcs.
0.2047 €
50 pcs.
0.1845 €
100 pcs.
0.1725 €
500 pcs.
0.1583 €
*incl. VAT plus shipping costs
**Subject to prior sale
Short-circuit jumper, 10005983, Fischer Elektronik

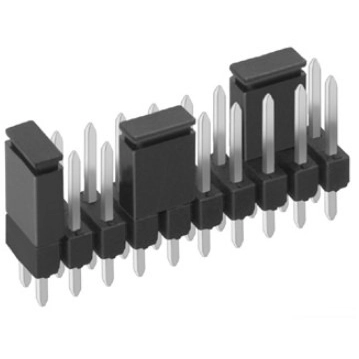

Closed version, with sockets for wire-wrap posts from 0.6 to 0.64 mm and round pins from 0.6 to 0.7 mm, lateral double-action spring contacts pins for shorting 2 pins. The bridges can be installed in-line laterally and horizontally; Rated current: 1.5 A. Operating temperatures: -40 to +105 °C. Contact finish: 0.1 µm gold-plating.
Type: CAB 4 GR, red.
Technical specifications
| Farbe | rot | |
| Kontaktoberfläche | vergoldet | |
| Nennspannung | 250 V | |
| Nennstrom | 1.5 A | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
