10005984 | Fischer Elektronik
Short circuit jumper, pitch 2.54 mm, 250 V, 1.5 A, gold-plated, black, 10005984
Unit Price (€ / pc.)
0.1749 € *
Available: 18,650 pcs.
Leadtime: 17 Weeks **
Total Price:
4.37 € *
Price list
Quantity
Price per unit*
25 pcs.
0.1749 €
50 pcs.
0.1523 €
100 pcs.
0.1464 €
500 pcs.
0.1345 €
*incl. VAT plus shipping costs
**Subject to prior sale

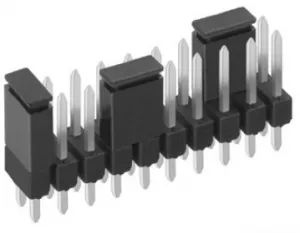

Short-circuit jumpers and bridges for 2.54 mm grid, type Fischer CAB.
Closed version, with sockets for wire-wrap posts from 0.6 to 0.64 mm and round pins from 0.6 to 0.7 mm, lateral double-action spring contacts pins for shorting 2 pins. The bridges can be installed in-line laterally and horizontally; Rated current: 1.5 A. Operating temperatures: –40 to +105 °C. Contact finish: 0.1 µm gold-plating.
Type: CAB 4 GS, black
Technical specifications
| Colour | black | |
| contact surface | gold-plated | |
| Rated voltage | 250 V | |
| Rated current | 1.5 A | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
