10029001 | Fischer Elektronik
Short circuit jumper, pitch 5.08 mm, 250 V, 3 A, gold-plated, black, 10029001
Unit Price (€ / pc.)
0.6188 € *
Available: 505 pcs.
Leadtime: 4 Weeks **
Total Price:
6.19 € *
Price list
Quantity
Price per unit*
10 pcs.
0.6188 €
50 pcs.
0.5831 €
100 pcs.
0.5236 €
500 pcs.
0.4998 €
*incl. VAT plus shipping costs
**Subject to prior sale

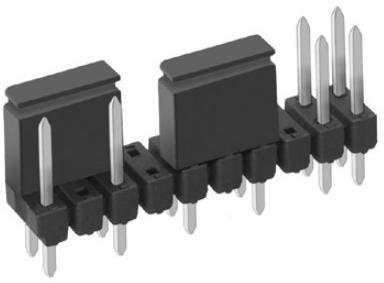

Short-circuit jumpers and bridges for 5.08 mm grid, type Fischer CAB.
With sockets for wire-wrap posts from 0.6 to 0.64 mm and round pins from 0.6 to 0.7 mm, lateral double-action spring contacts pins for shorting 2 pins. The bridges can be installed in-line laterally and horizontally; Contact finish: gold-plated.
Closed version with test probe hole for 5.08 mm grid, type CAB 5.
Type: CAB 5 05 G, black
Technical specifications
| Colour | black | |
| contact surface | gold-plated | |
| Rated voltage | 250 V | |
| Rated current | 3 A | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
